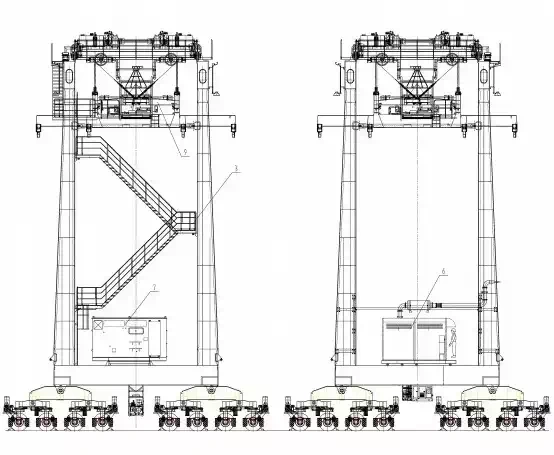

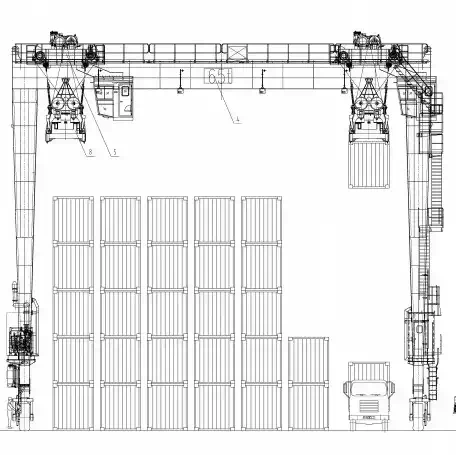

Introduction of Rubber-tyred Gantry Crane
RTG Rubber-tyred Container Gantry Cranes are applicable to remove, load and unload international standard containers.
Features of Rubber-tyred Gantry Crane
Lightweight & High-Performance Structure
Trolley-style design ensures a lightweight yet durable construction.
Excellent maneuverability with minimal impact from uneven ground.
High operational efficiency for rapid container stacking and transport.
Dual Power Supply for Continuous Operation
Primary power provided via cable drum during normal operations.
Backup diesel generator enables functionality during power loss or yard transfers, supporting 24/7 productivity.
Enhanced Mobility & Operational Flexibility
Rubber-tired movement allows repositioning without fixed rails.
Suitable for ports, terminals, and intermodal yards with changing container handling demands.
Robust Construction & Safety Assurance
Double-girder gantry with welded steel frame (Q235B/Q345B).
Independent drive systems ensure stable and reliable travel.
Tire protection and high-wear-resistant rubber enhance durability.
Accurate Control & Automation Features
Schneider frequency converter and Siemens PLC for smooth performance.
Remote (RCMS) and cabin control options for operational efficiency.
High-precision spreader handles ISO containers (twin-lift available).
Harsh Environment Adaptability
Operating temperature: -20°C to +45°C | Humidity resistance up to 95% (with dew).
Wind resistance: 20 m/s (in operation), 44 m/s (parked).
A6-A7 duty rating for high-intensity, frequent-load operations.
Customizable Options
Multiple lifting capacities to suit different yard needs.
Optional electric, diesel, or hybrid power configurations.
High-Quality Components for Durability
Premium motors (Jiamusi, Nanjing, ABM, SEW).
Forged steel hooks and vacuum-cast wheels for extended lifespan.
Dependable electrical components (Schneider, Siemens, Chint).

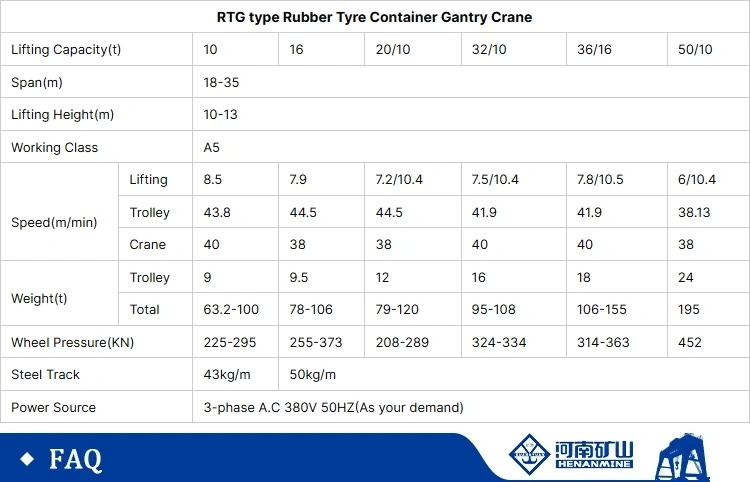

Technical Parameters of Rubber-tyred Gantry Crane
Capacity: 40t/50/100t or customized
Span: 5-35m or customized
Lifting height: <32m or customized
Work Class: A5-A8
Power Supply: Three-phase AC 50 Hz 380V
